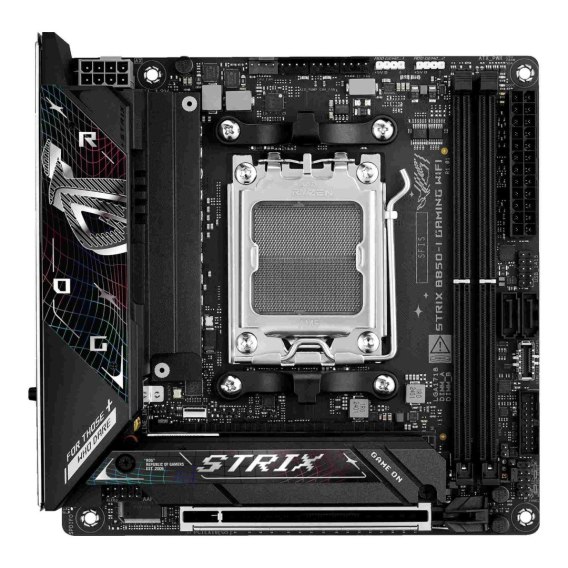

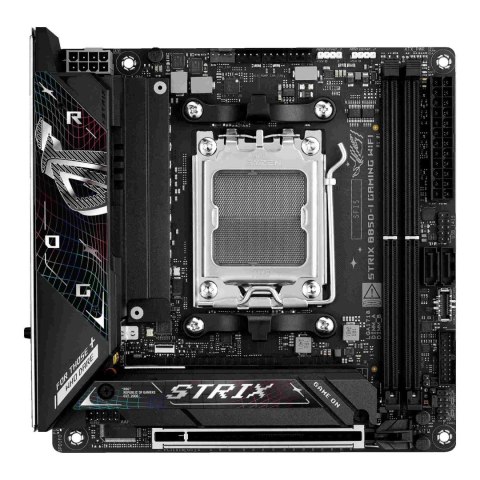

Płyta Asus ROG STRIX B850-I GAMING WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/AM5/mITX

Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™ (AM5)

Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format płyty: Mini-ITX

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty głównej: AMD B850

Ilość złącz pamięci DDR5: 2

Maksymalna wielkość pamięci: 96 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-8400+ (OC)

Uwagi do pamięci RAM: Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode), - M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode), - M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Specifications vary by CPU types.

Gniazda karty graficznej: HDMI, USB Type-C

Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, VGA resolution support depends on processors' or graphic cards' resolution

Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, input, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output., The LINE OUT port on the rear panel does not support spatial audio. If you, wish to use spatial audio, make sure to connect your audio output device, to the audio jack on the front panel of your chassis or use a, USB interface audio device.

Złącza PCI Express x16: 2

Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Release Slim, AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot with Q-Release Slim

Port LAN: 1x 2,5 Gigabit LAN Intel®

Uwagi do karty sieciowej: ASUS LANGuard

Maksymalna ilość portów USB 2.0: 4

Maksymalna ilość portów USB 3.x: 9

Porty USB na panelu tylnym: 2x USB 2.0 + 5x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth: Bluetooth V5.4

Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E., For Windows 10, only Wi-Fi 6 is supported., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, countries, The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications.

Port PS/2: Brak

Port szeregowy (COM): Brak

Port równoległy (LPT): Brak

Inne porty i gniazda: 4-pin CPU Fan header, 4-pin Extra Flow Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 2x Addressable Gen 2 header, CPU Over Voltage jumper, Front Panel Audio header (AAFP), 10-1 pin System Panel header, Thermal Sensor header, BIOS FlashBack button , Clear CMOS button(s), FlexKey button

Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (mm): 170 x 170

Opakowanie: BOX

Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package(s), 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x M.2 backplate rubber package(s), 1 x Quick start guide

Zawiera baterię / akumulator: Tak

Informacje dodatkowe: Operating System: Windows 11, Manageability: WOL by PME, PXE
